fuel & brake line routings... and what the heck is this??

David Pollock · October 31, 2008, 02:00:31 AM

That gizmo you are curious about is an air filter for the vacuum shift assist that was available on the 41. If it is missing, you can count yourself fortunate. They were popular on the Chevrolet where they did not work any better.

The engine block may have been black, but the head was definitely silver. I had an original 37 with a black block and silver head and also a 40 which was the same. My present 40, however appears to have been all silver.

Nice work, you are doing well. dp

mvair · October 07, 2008, 04:21:04 PM

The armor is like a spring that slips over the tubing for protection. There is also a piece that fits the brake line from the proportioning valve to under the brake and clutch pedals. It is not shown in the pictures. I can give the exact measurements if you need them.

I got the armor from www.inlinetube.com

JimCno · October 07, 2008, 11:08:04 AM

mvair,

You mention the armor cable. I see it in the picture. What is this and where do you get it?

Lindsay McConnell · October 03, 2008, 09:35:49 PM

mvair,
Very interesting photos!
Gee, if there was carpet on the floor, I would swear that you we building that car in the living room, with the cozy comforts of a fireplace in the background! :o
Not a bad idea! ::)
Gotta say, I could only dream..... ;)
Lindsay

mvair · October 03, 2008, 02:32:53 PM

Your description sounds pretty accurate. The brake line clips to the inside of the frame rail through holes in the bottom of the rail (3 also) and then up to the same metal clip that the fuel line uses. From there the brake line connects to the rubber hose that goes from the frame to the rear axel. There are also two clips that hold the line to the rear axel housing.

The only thing you did not mention was the armor cable that covers the brakeline where it runs under the clutch and brake pedals and the on the fule and brake lines where they go under the frame at the rear.

I am between computers and don't have access to all of my pictures. I can take more if you need details that are not shown in these.

notdavidspade · September 29, 2008, 02:09:28 AM

No Problem... From what I can tell on what I have...
I've bent new Fuel line from the brass connector at the rubber hose for the fuel pump all the way to out back. It is attached by bent over metal up front where it follows the contor of the front brace, runs up beside the drivers upper control arm and then down to a bolted on clip on the outside drivers side frame rail. There it connects to another brass fitting and to 3 wire clips on the outside of the frame rail. Then it goes under the rail, and over the drivers rear strut mount, to a metal clip and then to the tank.

The brake line going back to the same area seems to go off the rear of the porpotioning valve/brake switch, under the clutch/brake assembly, then down through a hole in the frame and then trace the inside of the drivers frame rail till it ends at the softline. I'm not certain where it clips along this route. Your notes are appreciated.
Thanks!
Stephen in FL.

mvair · September 28, 2008, 10:35:01 PM

Sorry I did not see your post earlier. I can post pictures of the parts you need. I will need to find some or take some. Let me know if you are interested in a specific part of the line.

TodFitch · September 27, 2008, 01:12:46 AM

Quote from: notdavidspade on September 26, 2008, 11:30:38 PM
The whole engine? for some reason I thought it was just the head that was suppose to be silver.

1936 and earlier had silver head and black block, starting in 1937 the whole engine was silver.

notdavidspade · September 26, 2008, 11:30:38 PM

The whole engine? for some reason I thought it was just the head that was suppose to be silver.

Jim Benjaminson · September 25, 2008, 09:59:06 PM

Just a heads up if you are looking for authenticity but that engine should be painted silver/aluminum, not black

Jim Yergin · September 25, 2008, 09:49:41 AM

Pat is close. It is the breather for the power shift set up on the transmission.
Jim Yergin

36 Ply · September 25, 2008, 08:56:53 AM

This is just a wild guess, I've never owned a '41.

I wonder if it is a vacuum canister for a vacuum shift assist. Did the '41s have a vacuum shift? Anyway, that's my guess.

Regards, and nice photos of your progress,

Pat O'Connor

notdavidspade · September 24, 2008, 11:13:39 PM

Hey Folks,

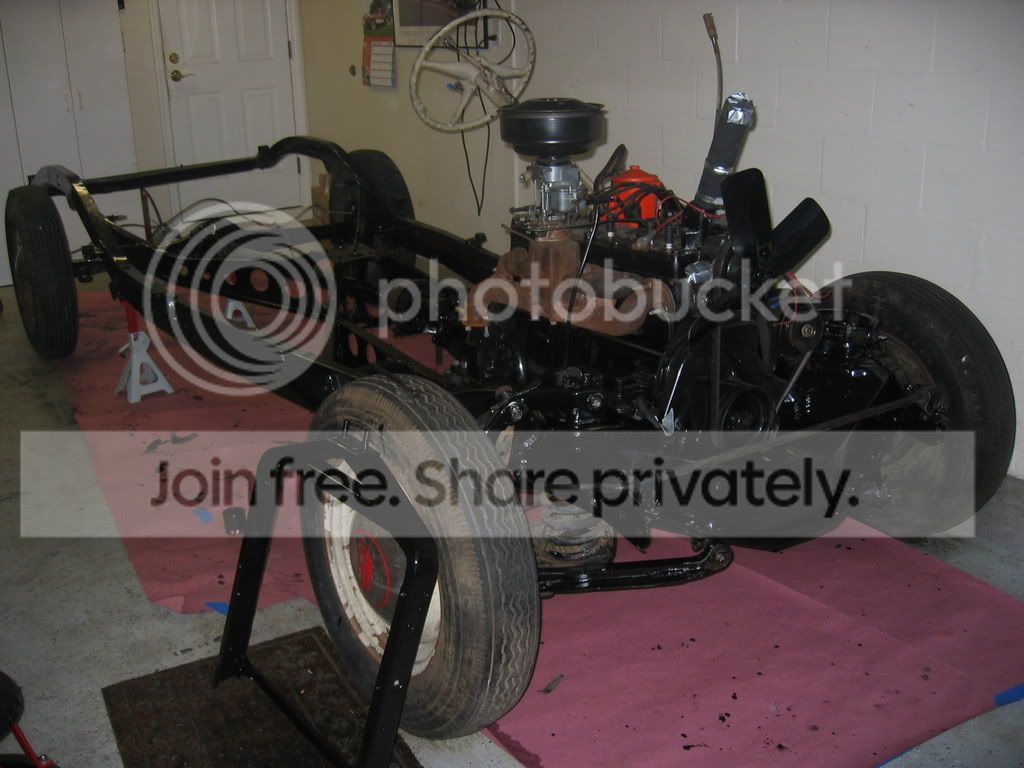

I'm in the process of bending new lines for my 41 and was wondering if someone (mvair??) had some pics of brake and fuel line routings and where the clips go.? I should have taken some more pics while I was disassembling, but so goes life.? Here are some pics of my progress...

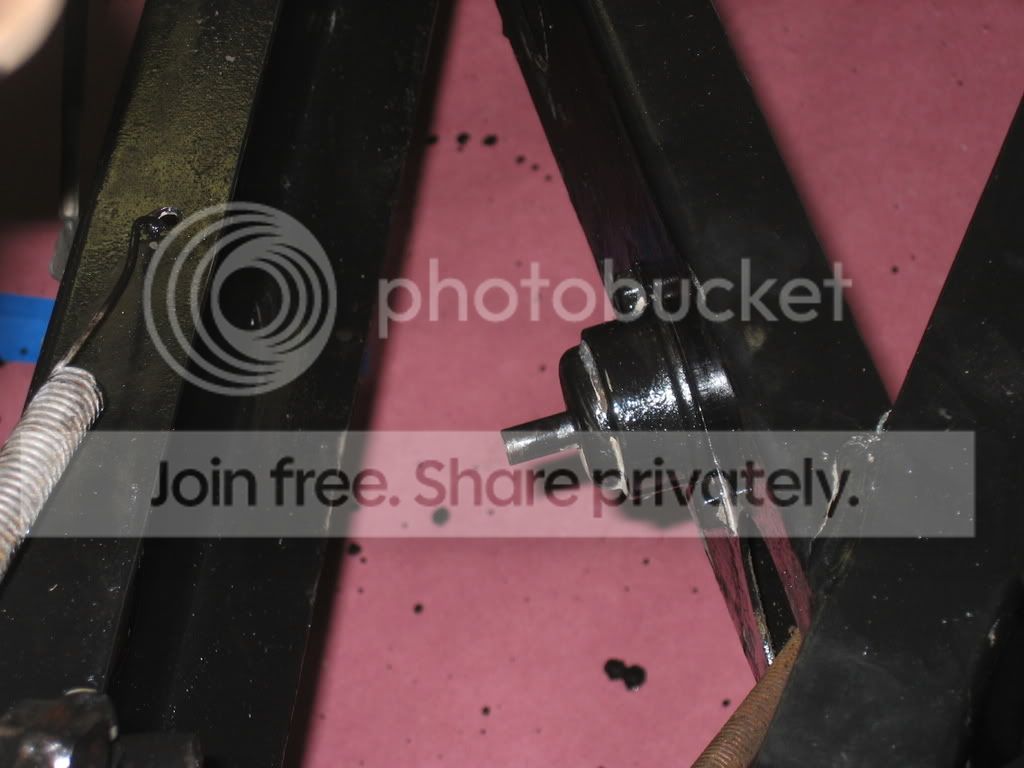

and as the super bonus question for 249 points.. what the heck is this thing for?? Its on the drivers side behind the pedals.? Picture is taken looking towards the rear.
